Alfatron 60W-UB

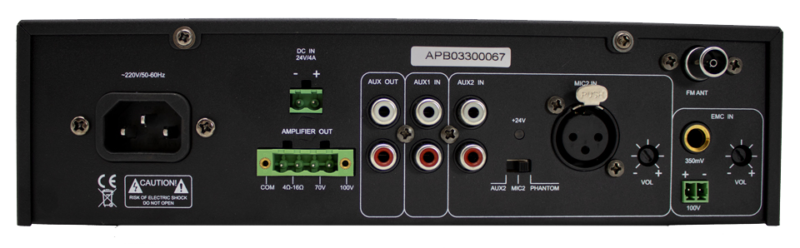

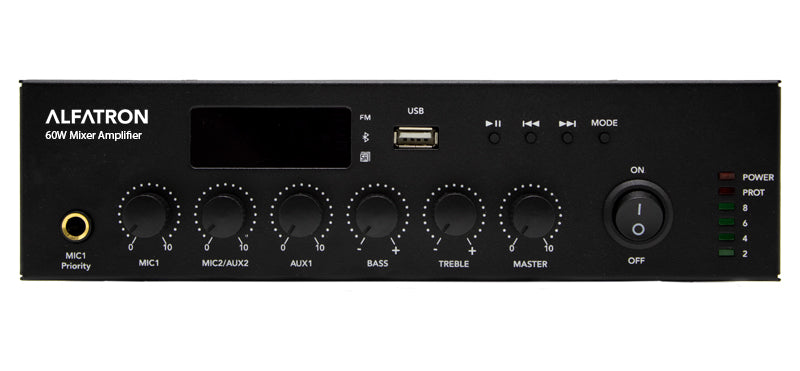

The Alfatron 60W-UB Compact Mixer amplifier has a built-in Media player with Bluetooth, onboard tuner and MP3 player. Front panel microphone input with priority function, rear panel balanced microphone input with phantom power. Emergency input function. Dual RCA line inputs and RCA aux out. 60W at 70/100V and 4-16 Ohms, 24V backup power input, This is a Class-D Amplifier.


Product Features

  • Speaker Output of 100V or 70V & 4 -16 Ohms rated power output of 60W
  • USB, FM Radio & Bluetooth with remote control
  • 2 MIC inputs, 1 EMC input, 2 Line inputs, 1 Line output
  • Individual Volume control for Mic 1-2, Aux 1-2,  bass/treble, and master volume control
  • Supports both AC100-240V & 24V power Supply
  • Priority: EMC > MIC1>Others
  • LED indicators for power, clip, protect and signal
  • With Short-Circuit, clip, overload and high temp protection.
  • Ideal for small venues such as Classrooms, retail stores, coffee shops, restaurants, etc.
  • Class-D


Description  PA Amplifier with USB/SD & FM & Bluetooth
Rated power  60W
Speaker Outputs  100V or 70V & 4Ohms-8 Ohms-16 Ohms



Mic1 input by unbalance jack MIC 2 balance XLR socket


Line1-2 inputs by RCA; Line output by RCA

Attenuation  Microphone1-2, line1-2 and Mp3/FM, bass/treble and master
MIC1 input sensitivity  5mV
MIC2 input sensitivity  5mV
MIC3 input sensitivity  5mV
AUX1 input sensitivity  350mV
AUX2 input sensitivity  350mV
EMC input sensitivity  350mV
MIC frequency response  180Hz10kHz±3dB
AUX frequency response  70Hz16kHz±3dB
Noise  <5mV (4 ohm load output terminal)
THD  <1%1KHz
Protection  Short-circuit, clip, overload and high temp protection
Treble adjustment  10dB±2
Bass adjustment  10dB±2
Rated power Supply  AC~110-220V
Rated output voltage  60W/4Ω, AC220V
Priority  EMC > MIC1 > others
Machine size(L×W×H)  247*198*66mm
Packing size  343*302*121mm (1PS)
Maximum packing size  630*355*283mm (4PS)
Net Weight  2.6kg
Gross Weight  3.25Kg
